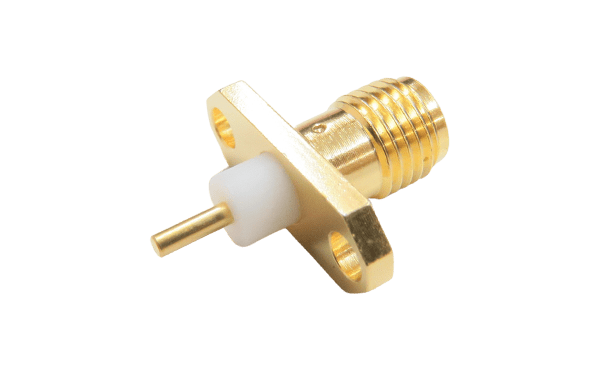

SMA ST. Jack Connector 2 Hole Flange Mount For Ø.050 Post Contact
SMA ST. JACK CONNECTOR 2 HOLE FLANGE MOUNT FOR Ø.050 POST CONTACT
Technical Specifications
| Connector Type / Interface | SMA |
|---|---|
| Gender | Jack |
| Orientation | Straight |
| Mounting Type | 2-Hole Panel |
| Termination Style | Post Contact |
| Cable Type / Size | Accepts Pin Diameter Ø0.050(1.27mm) |
| Impedance | 50 Ohm |
| Frequency Range | 12.4 GHz |
| Material & Plating | Brass |
| Operating Temperature Range | -65 ˚C - 165 ˚C |
