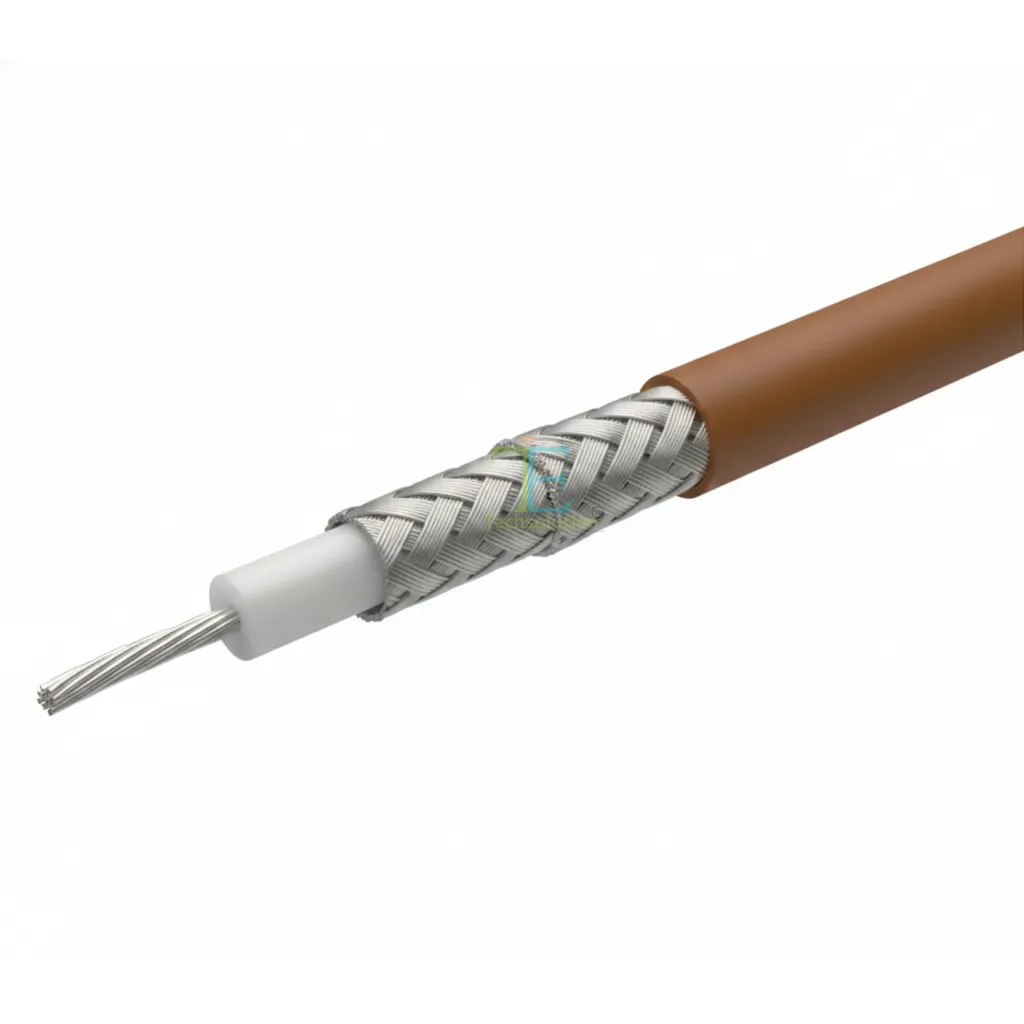

RG 316 DS Cable
RG 316 DS is a high-performance 50Ω coaxial cable designed for RF and high-frequency signal transmission with excellent shielding and thermal stability. Its silver-plated conductors and PTFE insulation ensure low loss, durability, and reliable performance in demanding environments.
Technical Specifications
| Part No. | TE-RFC-RG316DS-D2.54 |
|---|---|
| Cable Type | RG 316 DS Coaxial Cable |
| Impedance | 50 Ohm |
| Colour | Brown |
| Inner Conductor | Silver Plated Copper Wire, 7/0.18 mm |
| Dielectric | Solid PTFE, 1.52 mm |
| Outer Shield | Double Layer Silver Plated Copper Wire Braiding, 80 × 0.10 mm |
| Outer Jacket | 2.54 mm |
| Datasheet | View Document PDF |
