RG 223 Cable

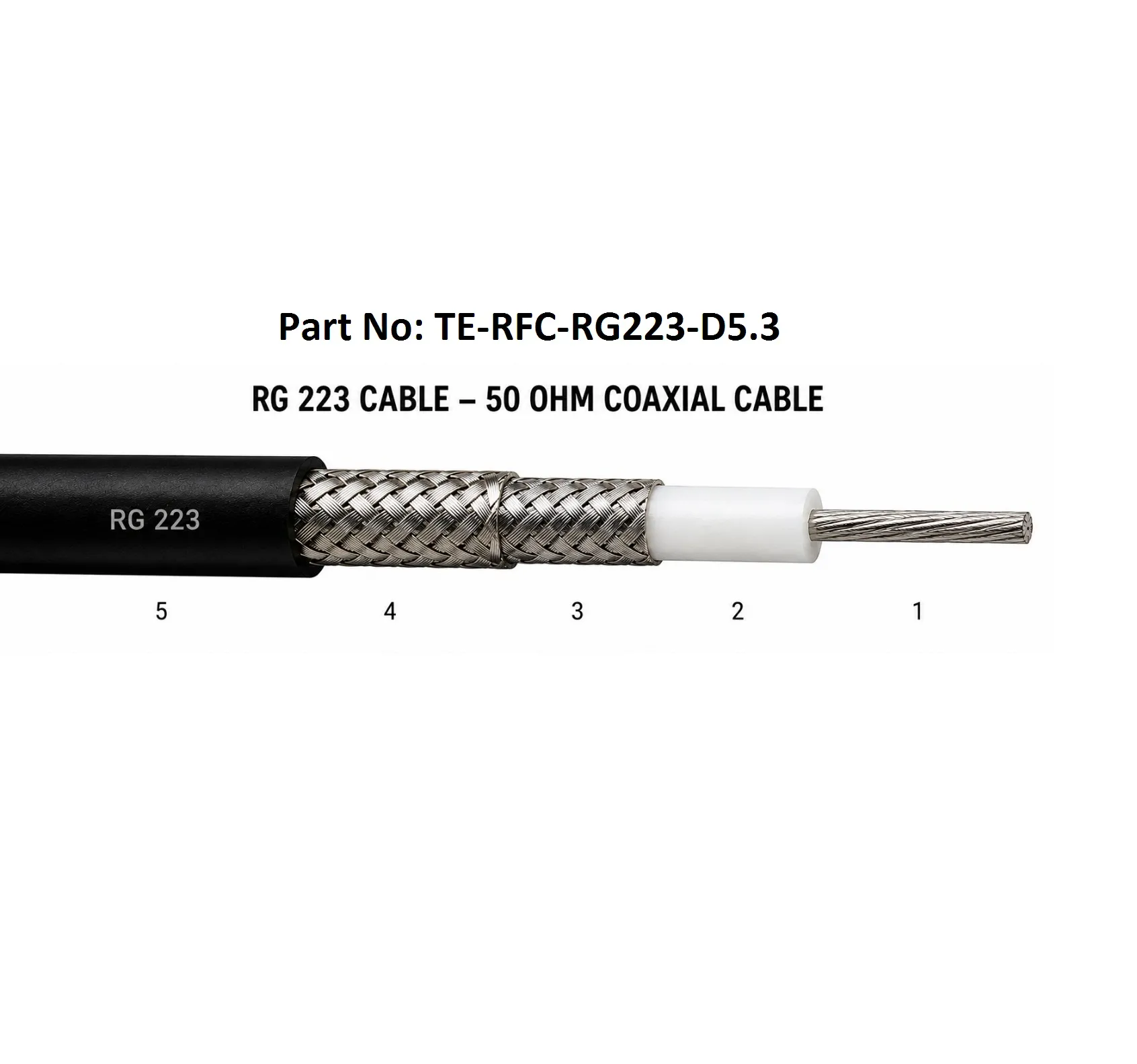

RG 223 is a 50 Ω coaxial cable designed for reliable RF signal transmission with enhanced shielding effectiveness against interference. It features a silver-coated copper conductor, solid polyethylene dielectric, high-coverage shielding, and a durable black PVC jacket.
Technical Specifications
| Cable Type | RG 223 Coaxial Cable |
|---|---|
| Impedance | 50 Ohm |
| Colour | Black |
| Inner Conductor | Silver-coated copper (SCC), 0.90 mm diameter |
| Dielectric | Solid polyethylene, 2.95 mm diameter |
| Outer Shield | Silver-coated copper (SCC) braid, 95% coverage |
| Outer Jacket | PVC (Black), 5.3 mm overall diameter |
| Part No. | TE-RFC-RG223-D5.3 |
| Datasheet | View Document PDF |
