RG 214 Cable

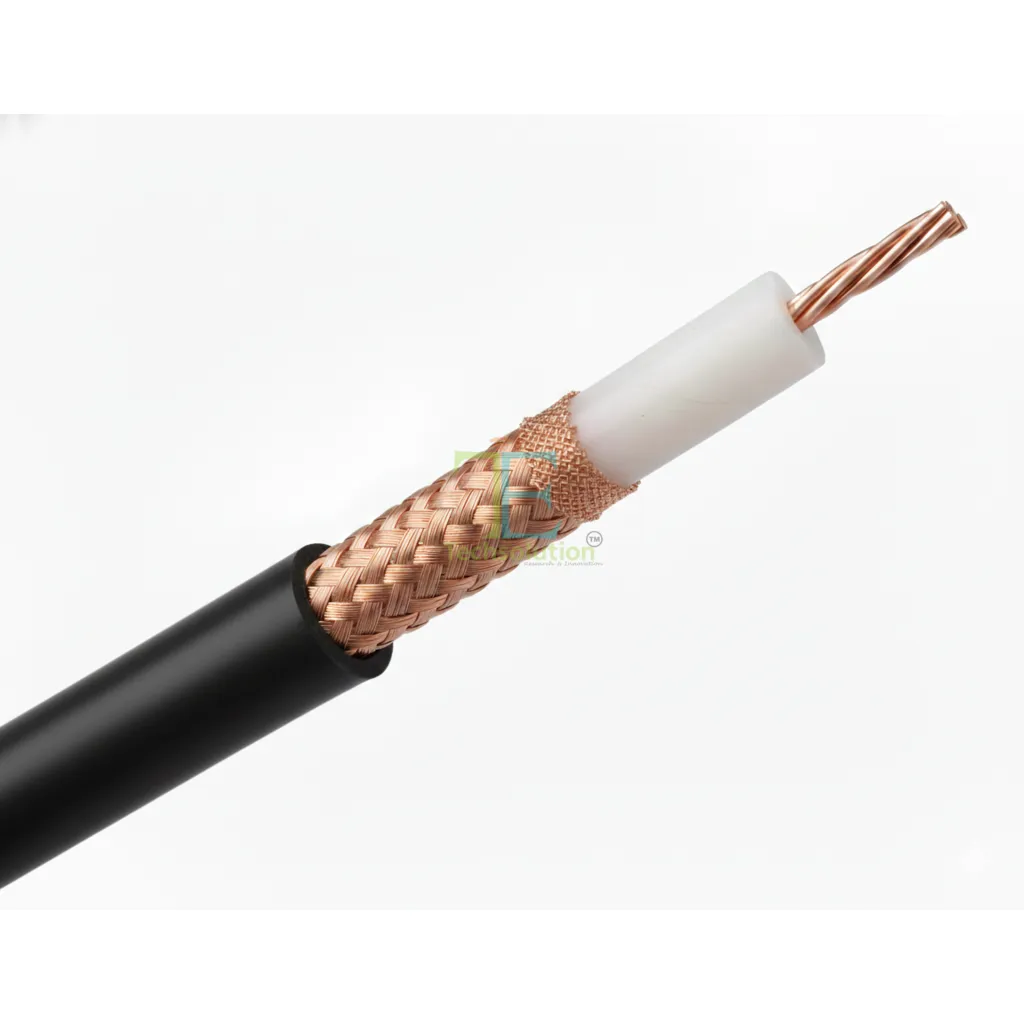

RG 214 is a high-performance coaxial cable designed for low-loss and interference-resistant signal transmission in demanding RF applications.It features a stranded bare copper conductor, solid polyethylene dielectric, double copper braid shielding, and a rugged black PVC jacket.
Technical Specifications
| Cable Type | RG 214 Coaxial Cable |
|---|---|
| Impedance | 50 Ohm |
| Colour | Black |
| Inner Conductor | Bare copper, 7 / 0.752 mm |
| Dielectric | Solid polyethylene, 7.24 mm diameter |
| Outer Shield | Double copper wire braiding, 93% + 90% coverage |
| Outer Jacket | PVC (Black), 10.8 mm overall diameter |
| Part No. | TE-RFC-RG214-D10.8 |
| Datasheet | View Document PDF |
