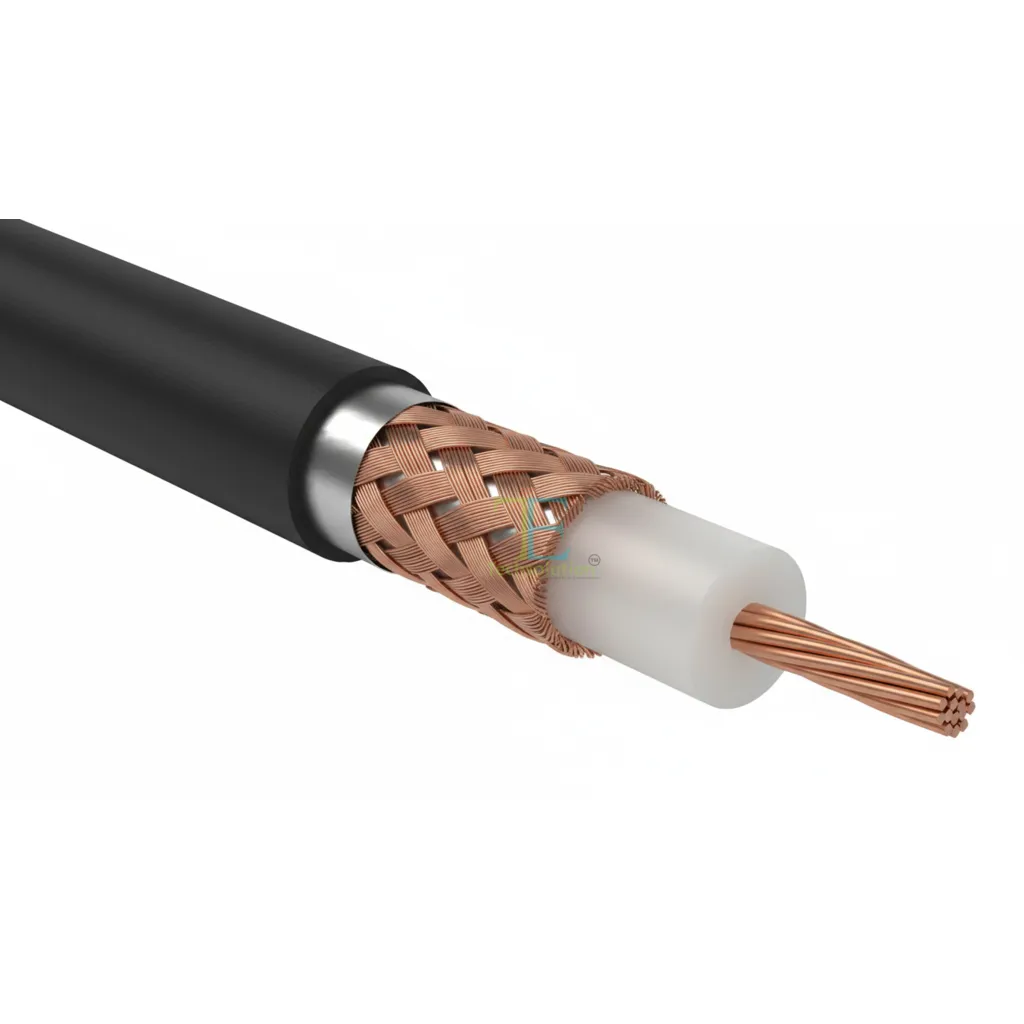

RG 213 Cable

RG 213 is a coaxial cable designed for low-loss signal transmission in high-power and RF communication applications.It features a stranded bare copper conductor, solid polyethylene dielectric, and robust shielding with a durable black PVC jacket. Technical Specifications Cable Type: RG 213 Coaxial Cable Impedance: 50 Ohm Colour: Black Inner Conductor: Bare copper, 7 / Dielectric: Solid polyethylene, 7.25 mm diameter Outer Shield: 0.12 mm Al-Mg foil with 64-strand copper braiding Outer Jacket: PVC (Black), 10.3 mm overall diameter

Technical Specifications

Cable Type RG 213 Coaxial Cable
Impedance 50 Ohm
Colour Black
Inner Conductor Bare copper, 7 / 0.745 mm
Dielectric Solid polyethylene, 7.25 mm diameter
Outer Shield 0.12 mm Al-Mg foil with 64-strand copper braiding
Outer Jacket PVC (Black), 10.3 mm overall diameter
Part No. TE-RFC-RG213-D10.3
Datasheet View Document PDF
