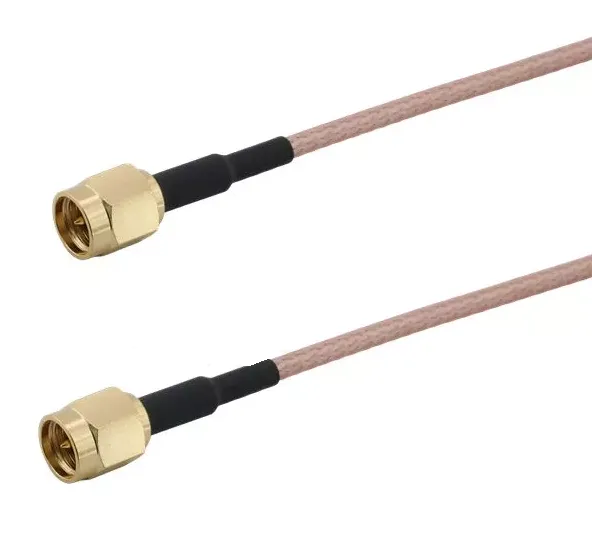

SMA Male Straight To SMA Male Straight – RG 316
RF Cable Assembly – 50 ohm, SMA Male Straight To SMA Male Straight For RG 316.
Technical Specifications
| Part No | TE-RFCA-SMA-MS-MS-316 |
|---|---|
| Frequency Range | 0-3GHz |
| Impedance | 50ohm |
| Vswr | ≤ 1.35 |
| Diameter | 2.54mm |
| Operating Temperature | -40 to 85°C |
| Durability (mating) | >=500 |
| Datasheet | View Document PDF |
