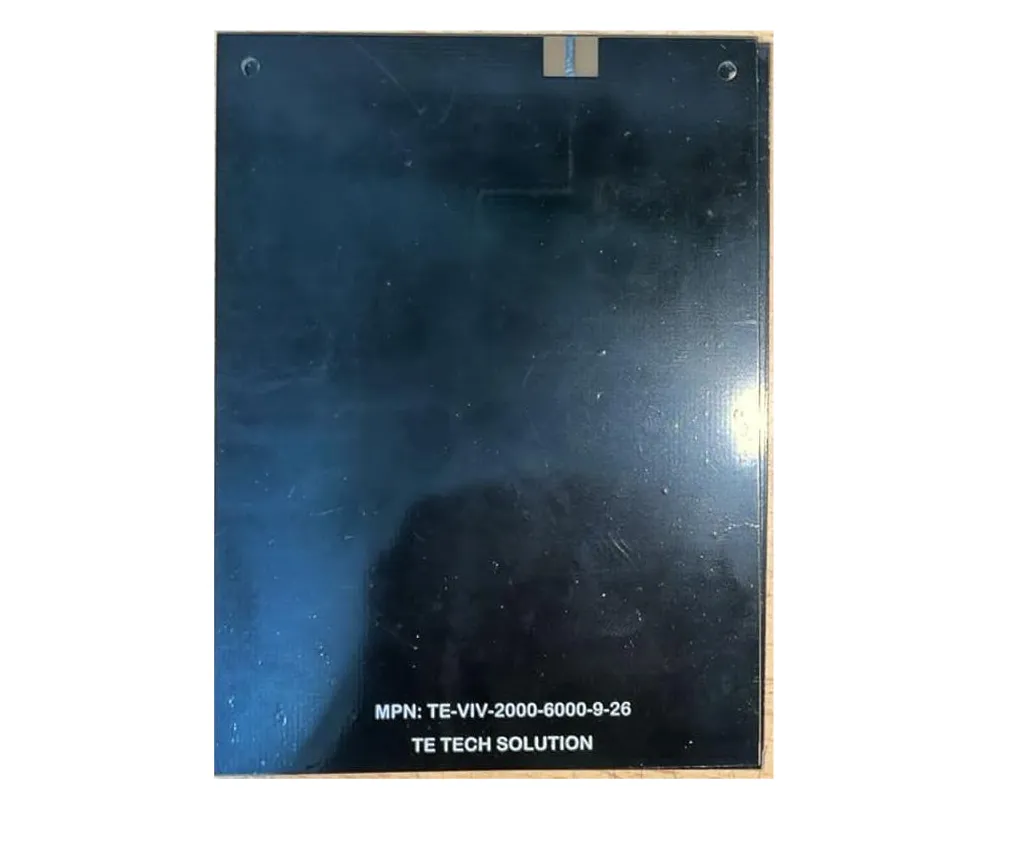

HIGH GAIN VIVALDI DIRECTIONAL ANTENNA (2-6 GHz) – COMPACT UWB RADAR ANTENNA
High-Gain Vivaldi Directional Antenna delivers wideband performance, high gain, and focused directional radiation for reliable long-range RF transmission and reception. Its compact design makes it ideal for radar, wireless communication, spectrum monitoring, sensing, and measurement applications.
Technical Specifications
| Part No. | TE-VIV-2000-6000-9-26 |
|---|---|
| Antenna Type | Vivaldi |
| Frequency Range / Band | 2000-6000 MHz |
| Application / Use Case | Radar and RF sensing systems, Wireless communication and long-range links, Spectrum monitoring and signal detection, Electronic warfare. |
| Impedance | 50 Ω |
| Vswr / Return Loss | <2:1 |
| Bandwidth | 112 deg x 55 deg @ 2000MHz | 110 deg x 65 deg @ 3000 MHz | 80 deg x 60 deg @ 4000 MHz | 65 deg x 50 deg @ 5000 MHz | 50 deg x 40 deg @ 6000 MHz |
| Gain | 5.0 dBi @ 2000MHz 6.5 dBi @ 3000 MHz 7.5 dBi @ 4000 MHz 8.1 dBi @ 5000 MHz 9.0 dBi @ 6000 MHz |
| Polarization | Vertical |
| Input Power / Max Power Handling | 20W (Max) |
| Dimensions | Φ110*80*10mm |
| Weight | <0.5kg |
| Connector Type | SMA-Female (Mil Grade) |
| Datasheet | View Document PDF |
