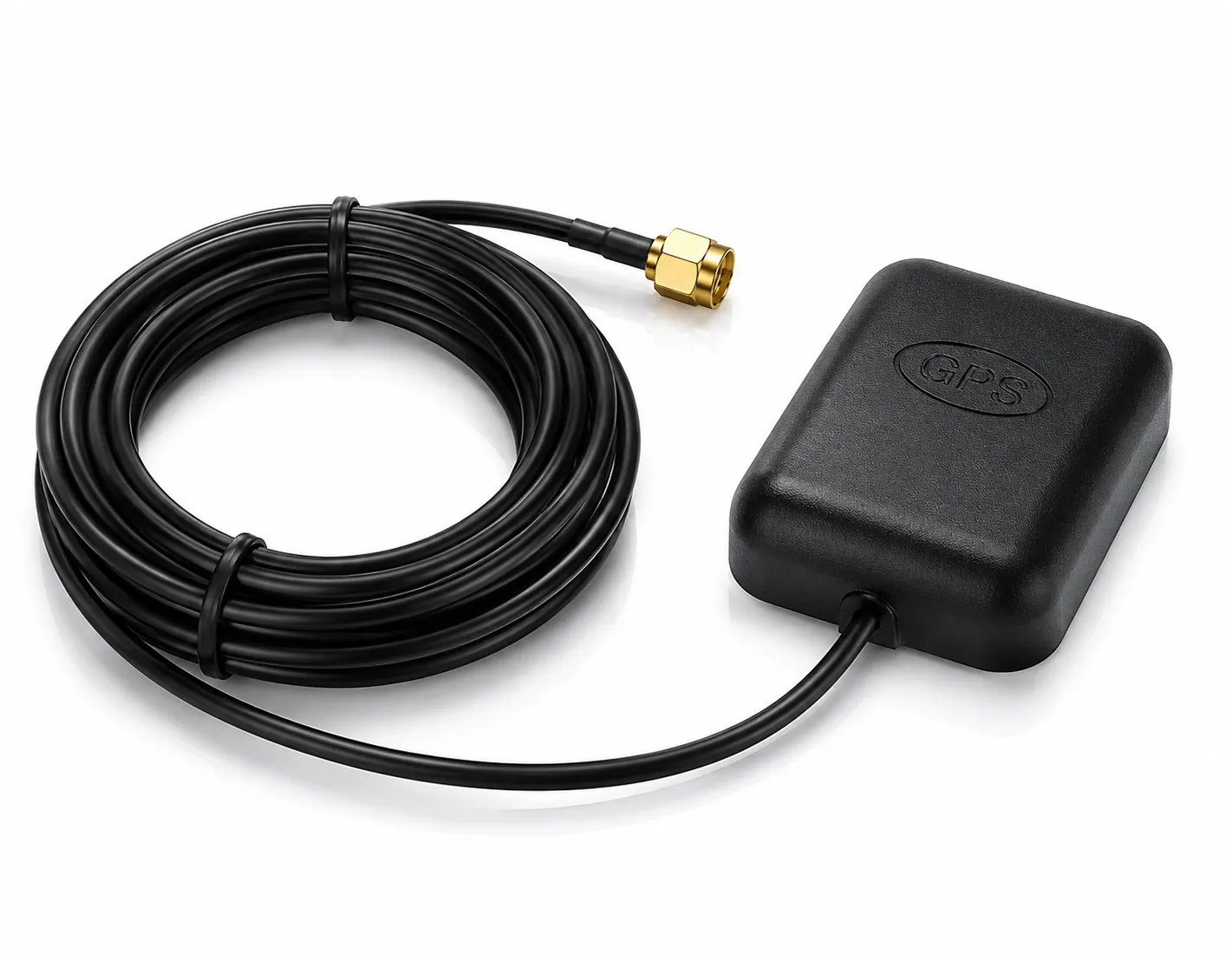

GPS Magnet Mount Antenna
Designed for reliable GPS signal reception, this high-performance magnetic mount antenna ensures stable positioning
and navigation in demanding environments. Its strong magnetic base enables quick, secure installation on metal surfaces,
while the durable low-loss coaxial cable provides consistent signal performance. Ideal for automotive, fleet management,
IoT, tracking, and telematics applications.
Technical Specifications
| Part No. | TE-ANT-GPS-SMA-PLUG-5M |
|---|---|
| Antenna Type | GPS Antenna |
| Frequency Range / Band | 1575 ± 30 MHz |
| Application / Use Case | GPS |
| Impedance | 50 Ω |
| Vswr / Return Loss | < 1.5 |
| Gain | > 28 dBi (with LNA) |
| Polarization | RHCP |
| Input Power / Max Power Handling | 50 W |
| Dimensions | 35 x 45 x 15 mm |
| Weight | < 100 g |
| Connector Type | SMA Male |
| Mounting Type | Magnetic |
| Datasheet | View Document PDF |
