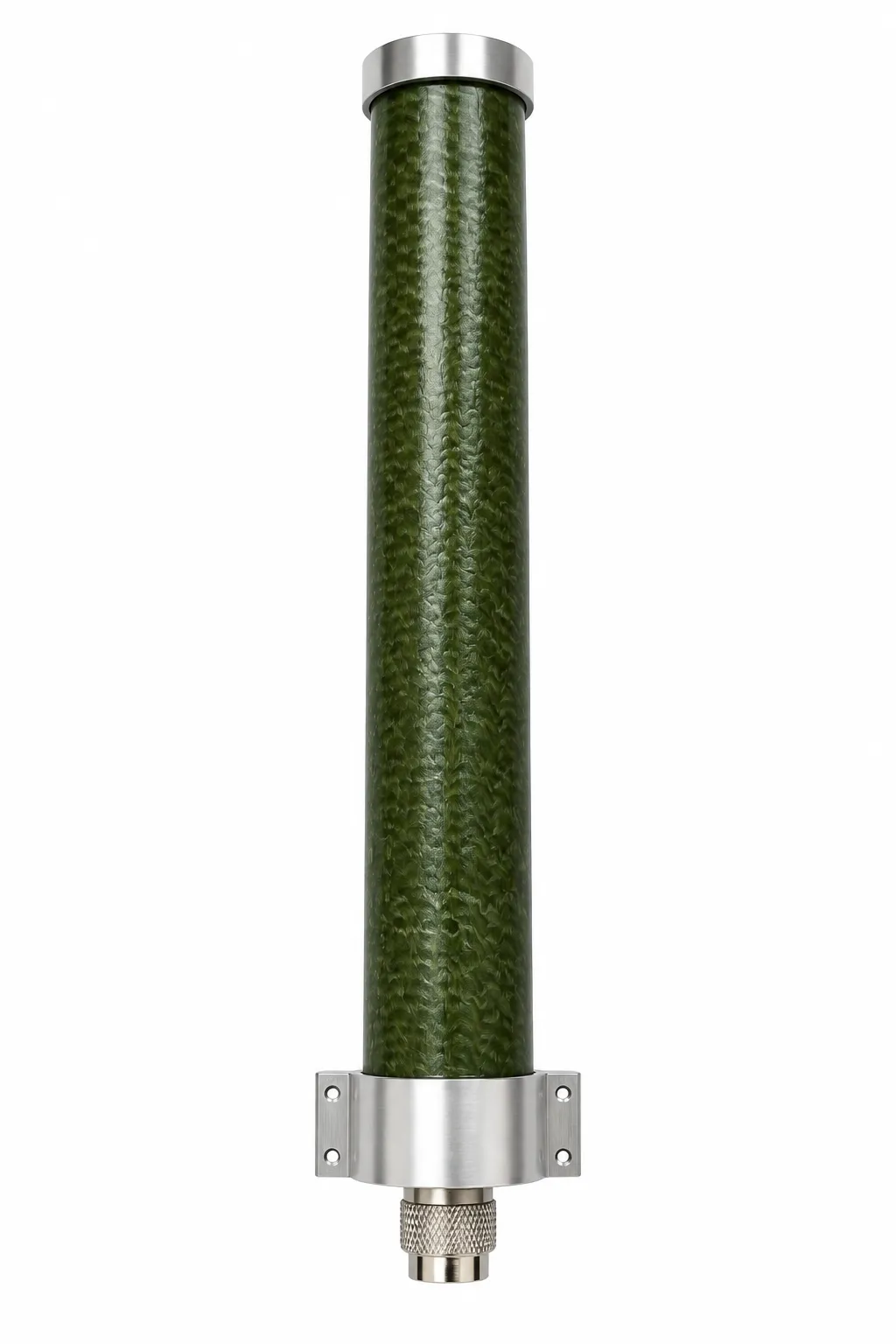

Omni-Directional Antenna
This Omni directional Antenna is designed to provide reliable, high-performance wireless communication across a wide range of applications. Operating over a 2–3 GHz frequency range with a 7 dbi gain, it delivers consistent 360° coverage and stable signal transmission and reception. Its Omni directional radiation pattern makes it ideal for applications where uniform coverage around the antenna is required.
Technical Specifications
| Part No. | TE-ANT-OMNI-2000-3000-26 |
|---|---|
| Antenna Type | Omni Directional |
| Frequency Range / Band | 2.0-3.0 GHz |
| Application / Use Case | Wi-Fi, LTE, 5G |
| Impedance | 50 Ω |
| Vswr / Return Loss | ≤ 2.0 |
| Gain | 7 dBi |
| Polarization | Linear |
| Input Power / Max Power Handling | 50 W (Max.) |
| Radiation Pattern Type | Omni Directional |
| Dimensions | 250 x Φ40mm (Approx.) |
| Weight | < 500 g |
| Connector Type | N-Male |
| Datasheet | View Document PDF |
